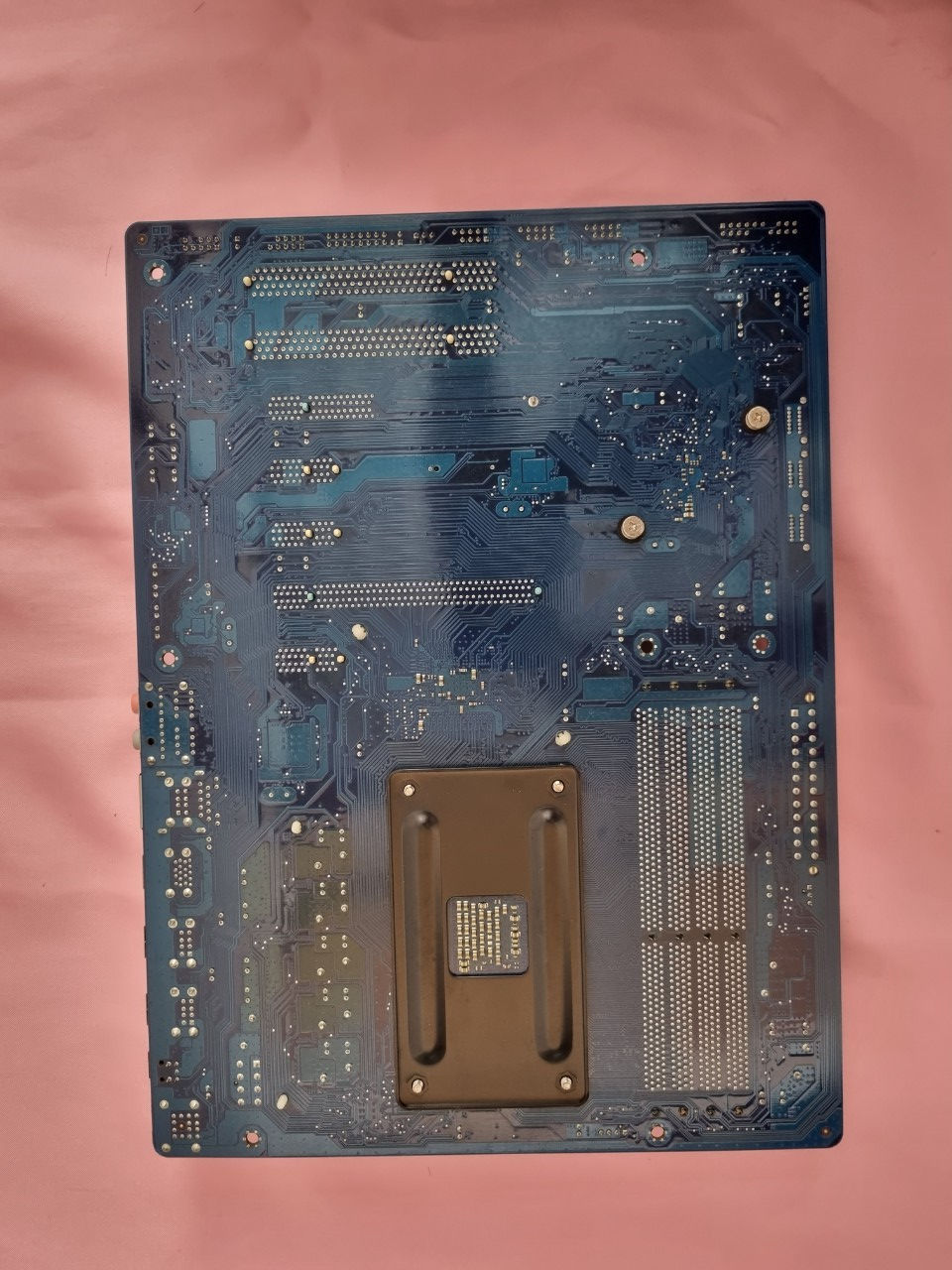

Processor AM3+ Socket: AMD AM3+ FX processors AMD AM3 Phenom™ II processor/ AMD Athlon™ II processor (Please refer "CPU Support List" for more information.) Hyper Transport Bus HyperTransport™ 3.0 Support up to 5200MT/s Chipset North Bridge: AMD 970 South Bridge: AMD SB950 Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1) Dual channel memory architecture Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules (Note 2) (Please refer "Memory Support List" for more information.) Audio VIA VT2021 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Realtek GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 3) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots (All PCI Express slots conform to the PCI Express 2.0 standard.) 2 x PCI slots IDE ATA South Bridge: 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD USB South Bridge: Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers) Etron EJ168 chip: Up to 2 USB 3.0/2.0 ports on the back panel (Note 4) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x power fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header Rear Panel I/O 1 x PS/2 keyboard/mouse port 1 x optical S/PDIF Out connector 8 x USB 2.0/1.1 ports 2 x USB 3.0/2.0 ports 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone) I/O iTE I/O Controller Chip H/W Monitoring System voltage detection CPU/System temperature detection CPU/System/Power fan speed detection CPU overheating warning CPU/System/Power fan fail warning CPU/System fan speed control (Note 5) BIOS 2 x 32 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a Unique Features Support for @BIOS Support for Q-Flash Support for Xpress Install Support for EasyTune (Note 6) Support for Smart Recovery 2 Support for Auto Green Support for ON/OFF Charge Support for 3TB+ Unlock Support for Q-Share Bundle Software Norton Internet Security (OEM version) Operating System Support for Microsoft® Windows 8/7/Vista/XP Form Factor ATX Form Factor; 30.5cm x 22.4cm
Note (Note 1) Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
(Note 2) To support a DDR3 1866 MHz (and above) memory, you must install an AM3+ CPU first.
(Note 3) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(Note 4) Be sure to connect your USB device(s) to the USB 2.0/1.1 ports before the USB 3.0 driver is installed.
(Note 5) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
(Note 6) Available functions in EasyTune may differ by motherboard model.
Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
**************สินค้าเป็นสินค้ามือสอง สภาพใช้งานได้ปกติ อุปกรณ์ ฝาหลัง คู่มือ cd และกล่อง ผ่านการทดสอบแล้ว ทางร้านรับประกันการใช้งานให้ 15`วันหลังจากได้รับสินค้า*************
